Controlled Table Positioning
The CNC working table provides programmed positioning for the welding sequence. This supports recurring work on small and medium precision components that can be secured within the machine’s working range.

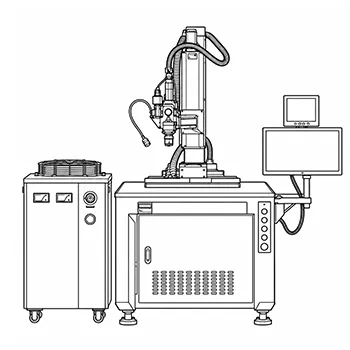

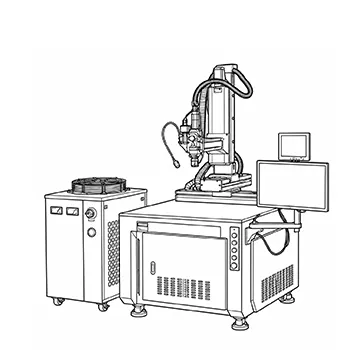

Platform-Type Laser Welding Machine
Combine CNC positioning, stored process settings and custom workholding for recurring welding tasks. Choose from four laser power configurations for hardware, kitchen and bathroom products, and precision sheet metal components.
Description
The platform laser welding machine comes standard with water cooling for extended continuous operation. Its CNC worktable provides precise positioning, while the touchscreen stores multiple welding parameter sets. Custom fixtures are available to suit different workpieces. It produces clean, consistent welds with a high yield rate, making it suitable for standardized batch production of hardware, kitchenware, and precision sheet metal parts.
Main Configuration
Core Features
Precision Welding
High worktable positioning accuracy produces smooth, seamless welds with minimal deformation, suitable for small and medium-sized precision hardware components.
High Efficiency & Cost Savings
Fast welding significantly reduces processing time, replaces traditional processes, and lowers labor and outsourced processing costs.
Low Thermal Damage
A small heat-affected zone prevents workpiece deformation and burn-through, making it suitable for thin sheets and heat-sensitive materials.
Versatile Compatibility
Compatible with stainless steel, carbon steel, aluminum, copper, and other metals. Programmable complex welding paths support high-volume production on assembly lines.
Easy Operation
An intuitive control system helps beginners get started quickly. Low energy consumption keeps daily production costs manageable.
Technical Specifications
| Parameter | LT-1500W | LT-2000W | LT-2500W | LT-3000W |
|---|---|---|---|---|
| Laser Power | 1500 W | 2000 W | 2500 W | 3000 W |
| Total Machine Power | 6 kW | 8 kW | 10 kW | 12 kW |
| Laser Wavelength | 1080 ± 10 nm | 1080 ± 10 nm | 1080 ± 10 nm | 1080 ± 10 nm |
| Positioning Accuracy | ±0.025 mm | ±0.025 mm | ±0.025 mm | ±0.025 mm |
| Repeat Positioning Accuracy | ±0.015 mm | ±0.015 mm | ±0.015 mm | ±0.015 mm |
| Cooling Method | Water cooling | Water cooling | Water cooling | Water cooling |
| Supply Voltage / Frequency | 220 V / 50 Hz | 220 V / 50 Hz | 380 V / 50 Hz | 380 V / 50 Hz |
| Published Dimensions* | 112 × 120 × 180 cm | 112 × 120 × 180 cm | 112 × 120 × 180 cm | 112 × 120 × 180 cm |
| Published Weight* | 280 kg | 280 kg | 280 kg | 280 kg |
Optional Equipment List
| Parameter | 1500W | 2000W | 3000W | 6000W |
|---|---|---|---|---|
| Laser Power | 1500W | 2000W | 3000W | 6000W |
| Total Power (Corresponding to Laser Power) | 6000W | 8000W | 12000W | 24000W |
| Cooling Method | Air Cooling | Air Cooling | Water Cooling | Water Cooling |

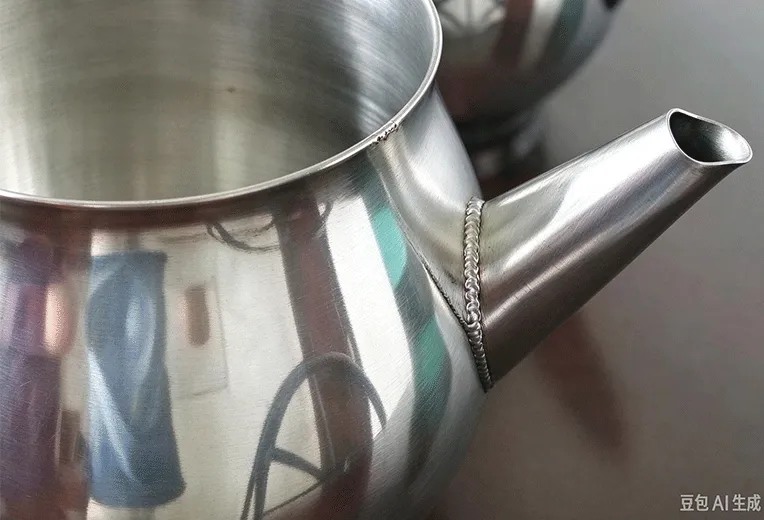

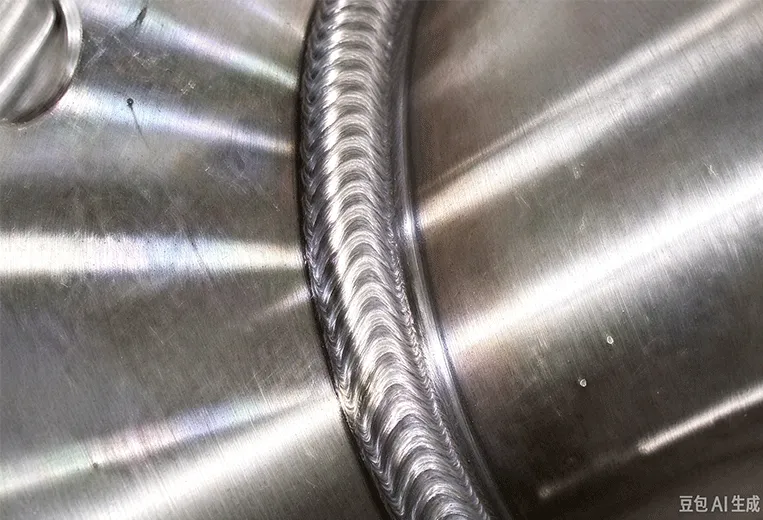

Sample Display
Industries We Serve
-
Port Shipping
-

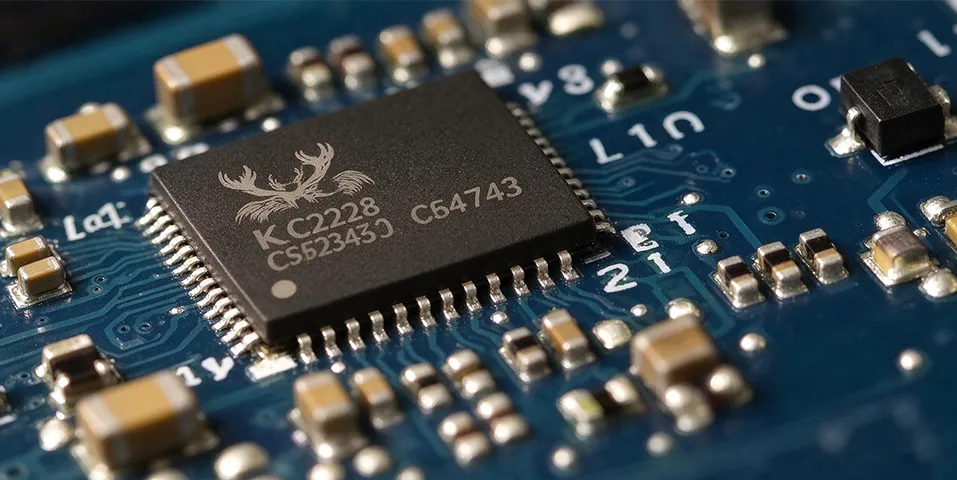

Consumer Electronics
-

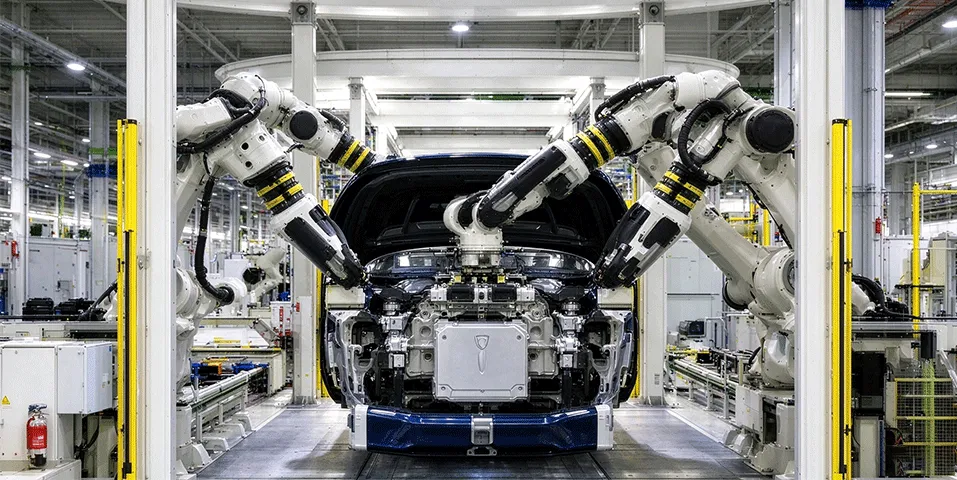

Intelligent Manufacturing
-
Interior Door
Product Purchasing Service
Together, We Look Forward To Creating A Long-Lasting And Reliable Partnership.
After-Sales Service System
- We Firmly Believe That Delivery Is Not The End Of Service, But The Beginning Of A Long-Term Partnership.
- Disu Laser Intelligent Equipment Offers Worry-Free After-Sales Support Through A Comprehensive Remote Service System That Covers The Entire Equipment Lifecycle—From Installation And Commissioning To Technical Support, And From Routine Maintenance To Rapid-Response Repairs—Ensuring Continuous, Stable, And Efficient Operation For Our Customers.
- It Is Our Responsibility To Ensure That Every Piece Of Equipment Remains In Peak Condition.
Quality Assurance
- The Warranty Period For The Equipment’s Laser And Chiller Is Two Years.
- The Warranty Period For The Remaining Components Is One Year (Excluding Consumables Such As Delivery Fibers And Lenses, Damage Caused By Force Majeure Events—Such As Natural Disasters Or War—As Well As Improper Operation Or Human-Induced Damage).
- Services Such As Free Technical Consultation And Software Upgrades Are Included. Technical Support Is Available Any Time To Address Any Equipment Malfunctions Or Issues.
