Rigid Gantry Structure
The gantry supports controlled positioning across the work area. It provides a structural basis for processing arranged components and repeated welding patterns.

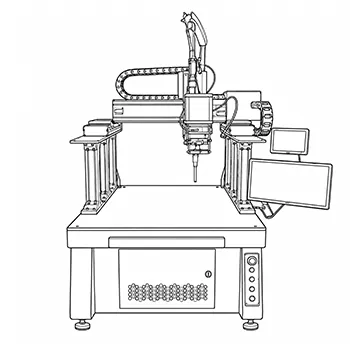

Gantry Galvo Laser Welding Machine
Combine gantry positioning and galvo scanning to process multiple weld locations on fixtured workpieces. Select from four laser power configurations and assess the setup against your component geometry, weld layout and production requirements.
Description
This CNC laser welding machine combines mechanical positioning with galvanometer-controlled beam movement. Within the configured scanning field, the galvo head directs the beam between weld locations, reducing the need to reposition the mechanical assembly for every individual point.
The CNC system supports programmable welding paths, including circular arcs and irregular trajectories. A rigid gantry provides the motion structure, while the water-cooled laser configuration supports the welding process. CCD weld magnification gives operators a closer view of the working area during setup and observation.
Main Configuration
Core Features
Large Travel Range
Optional multi-axis configurations provide ample three-axis travel for large-format sheet welding and batch welding of multiple workpieces.
High Speed and Efficiency
Galvanometer scanning delivers welding speeds 3–7 times faster than conventional arc welding, increasing overall productivity.
Precision Welding
High positioning repeatability ensures small, uniform weld spots, attractive welds, and high finished-product quality.
Flexible Programming
The CNC system supports flexible programming for continuous welding along arcs, irregular shapes, and other complex paths.
Automation Compatibility
Built-in connection interfaces simplify integration with assembly lines, fixtures, and fully automated production lines.
Technical Specifications
| Parameter | LT-1500W | LT-2000W | LT-2500W | LT-3000W |
|---|---|---|---|---|
| Laser Power | 1500 W | 2000 W | 2500 W | 3000 W |
| Total Machine Power | 6 kW | 8 kW | 10 kW | 12 kW |
| Laser Wavelength | 1080 ± 10 nm | 1080 ± 10 nm | 1080 ± 10 nm | 1080 ± 10 nm |
| Positioning Accuracy | ±0.025 mm | ±0.025 mm | ±0.025 mm | ±0.025 mm |
| Repeat Positioning Accuracy | ±0.015 mm | ±0.015 mm | ±0.015 mm | ±0.015 mm |
| Cooling Method | Water cooling | Water cooling | Water cooling | Water cooling |
| Supply Voltage / Frequency | 220 V / 50 Hz | 220 V / 50 Hz | 380 V / 50 Hz | 380 V / 50 Hz |
| Published Overall Dimensions* | 112 × 120 × 180 cm | 112 × 120 × 180 cm | 112 × 120 × 180 cm | 112 × 120 × 180 cm |
| Published Machine Weight* | 280 kg | 280 kg | 280 kg | 280 kg |
Optional Equipment List
| Parameter | 1500W | 2000W | 3000W | 6000W |
|---|---|---|---|---|
| Laser Power | 1500W | 2000W | 3000W | 6000W |
| Total Power (Corresponding to Laser Power) | 6000W | 8000W | 12000W | 24000W |
| Cooling Method | Air Cooling | Air Cooling | Water Cooling | Water Cooling |

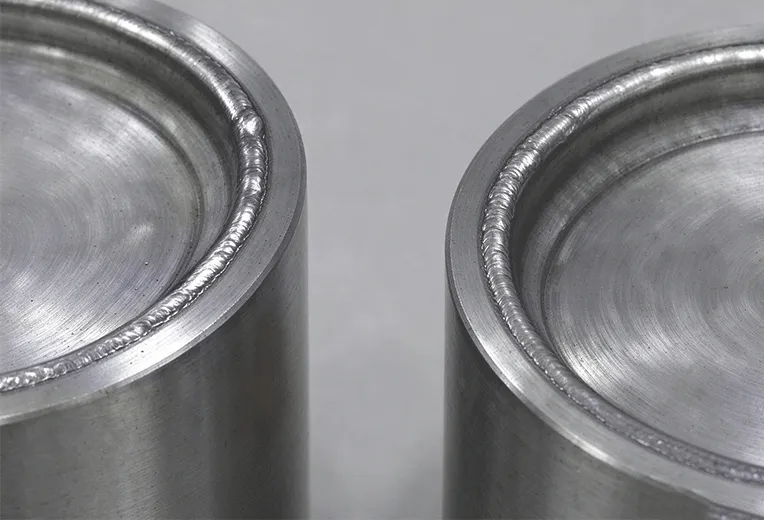

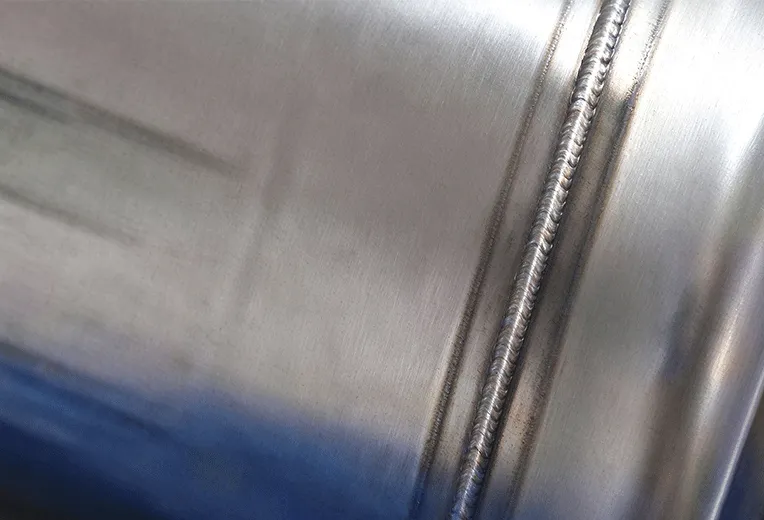

Sample Display
Industries We Serve
-
Intelligent Manufacturing
-

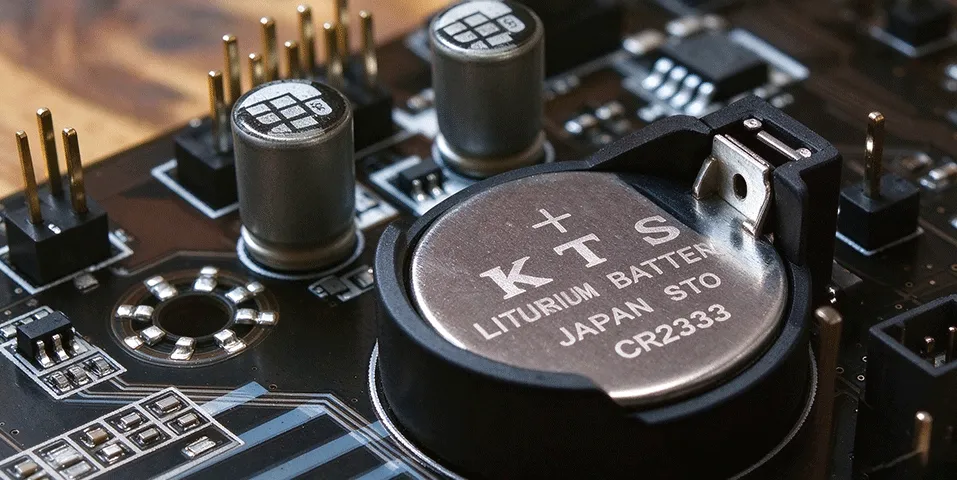

Electronics & Microelectronics
-
Port Shipping
-
Interior Door
Product Purchasing Service
Together, We Look Forward To Creating A Long-Lasting And Reliable Partnership.
After-Sales Service System
- We Firmly Believe That Delivery Is Not The End Of Service, But The Beginning Of A Long-Term Partnership.
- Disu Laser Intelligent Equipment Offers Worry-Free After-Sales Support Through A Comprehensive Remote Service System That Covers The Entire Equipment Lifecycle—From Installation And Commissioning To Technical Support, And From Routine Maintenance To Rapid-Response Repairs—Ensuring Continuous, Stable, And Efficient Operation For Our Customers.
- It Is Our Responsibility To Ensure That Every Piece Of Equipment Remains In Peak Condition.
Quality Assurance
- The Warranty Period For The Equipment’s Laser And Chiller Is Two Years.
- The Warranty Period For The Remaining Components Is One Year (Excluding Consumables Such As Delivery Fibers And Lenses, Damage Caused By Force Majeure Events—Such As Natural Disasters Or War—As Well As Improper Operation Or Human-Induced Damage).
- Services Such As Free Technical Consultation And Software Upgrades Are Included. Technical Support Is Available Any Time To Address Any Equipment Malfunctions Or Issues.
