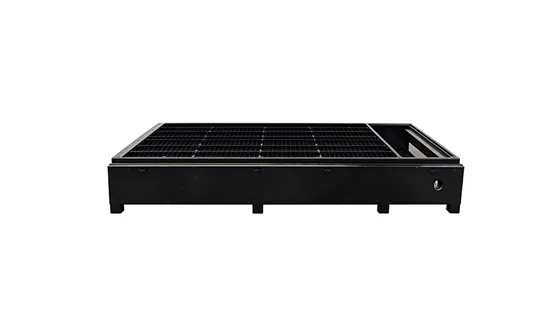

Machine Bed Options
Tube-welded and plate-welded beds accommodate different processing needs. Heat treatment and vibration aging help relieve stress, supporting structural stability and reliable long-term operation.
Optional Accessories
Optional equipment and accessories improve precision, efficiency and material compatibility to match your production needs and budget.
Description
Despark’s optional accessories support tube handling, workpiece clamping, compressed-air supply, electrical stabilization and laser cooling. The range includes pneumatic chucks, semi-automatic tube loading equipment, screw air compressors, three-phase voltage stabilizers and S&A water chillers. Machine-build options cover welded beds, beams, guideways and selected drive components. Each item is matched to the machine series, laser power and processing requirements, so the configuration supports the actual production task.
Main Configuration
Core Features
Precision Pneumatic Chuck
High-precision gear transmission supports reliable clamping and a long service life. Compatible chuck and servo configurations enable zero-tail cutting.

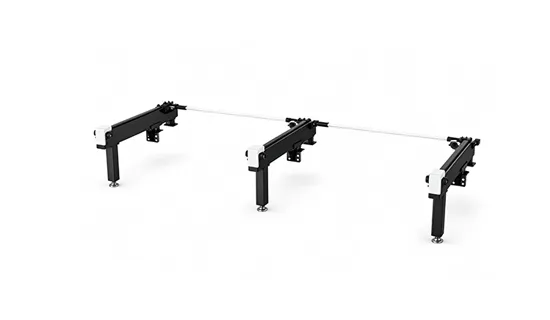

Semi-Automatic Loading
The semi-automatic loading system supports automatic tube-feeding cycles, helping reduce manual handling, operator effort and loading time.

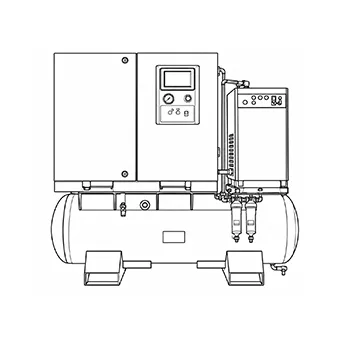

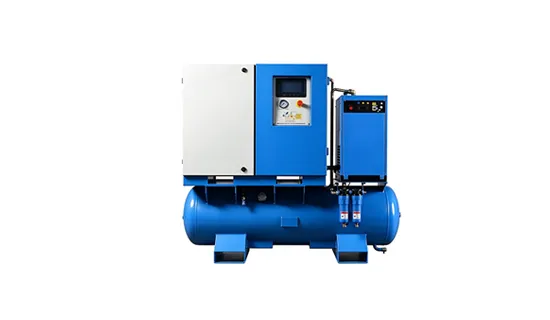

Stable Compressed Air Supply
A screw compressor delivers stable pressure for continuous operation. Variable-frequency control adjusts output to demand, while multi-stage filtration and drying help protect the cutting head.

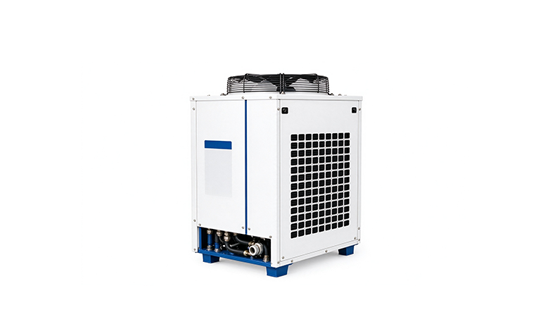

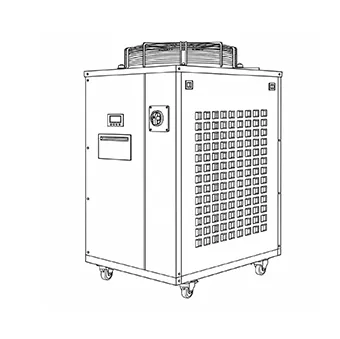

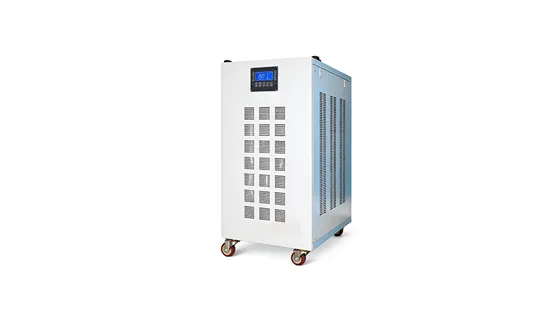

Voltage Stabilization & Cooling
The voltage stabilizer combines digital control, LCD monitoring and multiple protections. The dual-circuit water chiller supports constant-temperature and intelligent temperature-control modes.
Smart Touchscreen Control
Save and recall parameter settings with one touch. Cleaning requires no consumables and produces no wastewater pollution, providing efficient precision cleaning across multiple industries.
Technical Specifications
| Equipment / Configuration | Listed Features or Options | Intended Machine Scope |
|---|---|---|
| Machine bed | Tube-welded / plate-welded construction | Sheet cutting machine build |
| Beam | Iron / aluminum | Sheet cutting machine build |
| Linear guide specification codes | HGW20 / HGW25 / HGW30 / HGW35 | Sheet cutting; exact rail/block combination to be matched |
| Reducer brand options | Motovario / Nidec | Sheet cutting; model and ratio to be specified |
| Pneumatic chuck size designations | 120 / 160 / 240 mm | Compatible tube cutting configurations |
| Chuck arrangement | Zero-tail / non-zero-tail configuration options | Tube cutting; residual length depends on the machine arrangement |
| Focus adjustment | Manual / automatic | Tube cutting configuration list |
| Follow-up loading and unloading supports | With / without | Tube cutting configuration list |
| Clearance mechanism | Servo / pneumatic | Tube cutting; mechanism and movement to be confirmed |
| Air compressor | Variable-frequency screw drive; filtration and drying | Compatible compressed-air cutting application |
| Voltage stabilizer | Three-phase automatic regulation; LCD; copper regulating coils | Compatible machine electrical supply |
| Water chiller | S&A; two independent cooling circuits; two temperature-control modes | Compatible water-cooled configurations |
Custom Configurations Available
| Machine Category | Listed Configuration Options |
|---|---|
| Tube laser cutting | 1500 / 2000 / 3000 / 6000 W; 120 / 160 / 240 mm chuck designations; focus and material-support options |
| Sheet laser cutting | 1500 / 2000 / 3000 / 6000 W; listed servo motor options of 2000 / 3000 W; iron or aluminum beam; tube-welded or plate-welded bed; guideway and reducer options |
| Laser cleaning | Listed power options: 1200 / 1500 / 2000 / 3000 / 6000 W; air-cooled or water-cooled formats according to model |
| Laser welding | Listed power options: 1500 / 2000 / 3000 / 6000 W; air-cooled or water-cooled formats according to model |
| Cutting head matching | Select a cutting head compatible with the specified laser source and power |
