Compact & Space-Saving
The machine occupies only 6060 mm² of floor space, offering a compact footprint suitable for various workshops and production environments.
Laser Engraving Machine

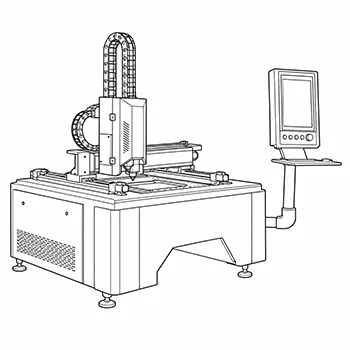

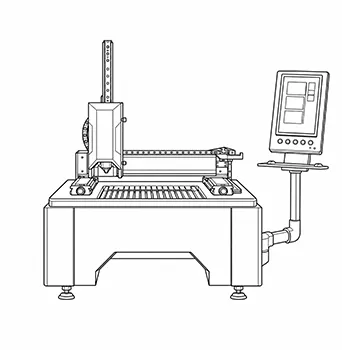

The Despark 6060SL provides a compact 600 × 600 mm platform for metal sheet cutting, combining a BLT4 cutting head, water cooling and CNC control for smaller fabrication jobs.
Description
The 6060SL provides a dedicated working area for smaller metal sheet blanks and components. Its compact platform is relevant to hardware manufacturers and sheet metal workshops handling varied part designs, small batches and urgent orders.

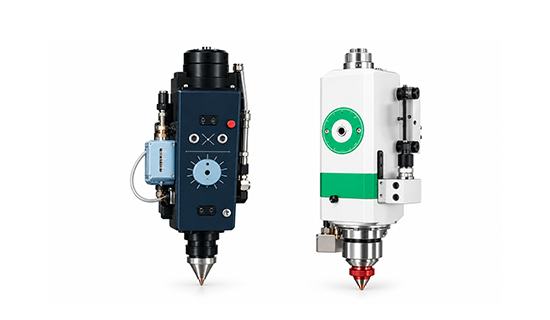

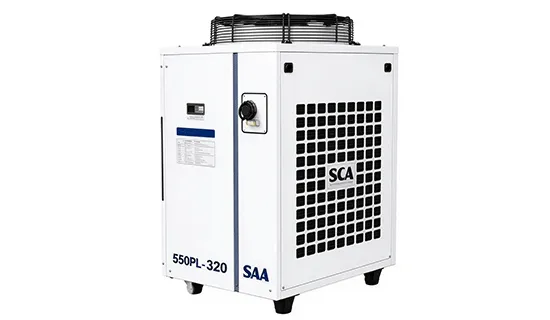

A precision transmission structure positions the cutting head over the workpiece, while the control system directs movement along the programmed cutting path. The BLT4 head performs the cutting operation, and the S&A water chiller provides cooling for the machine configuration.The separate control terminal keeps the operating interface accessible beside the platform. The product documentation emphasizes straightforward parameter setting and convenient operation.
Main Configuration
Core Features
High-Precision Cutting
Precise positioning and smooth, burr-free cutting surfaces reduce the need for additional finishing processes and improve product quality.
High Efficiency & Fast Production
High dynamic performance, fast cutting and idle travel speeds enable efficient processing of both large and small batches, including single-piece production.
Stable & Durable
Industrial-grade components and a rigid structural design ensure a low failure rate and reliable performance during long-term continuous operation.
Easy to Operate

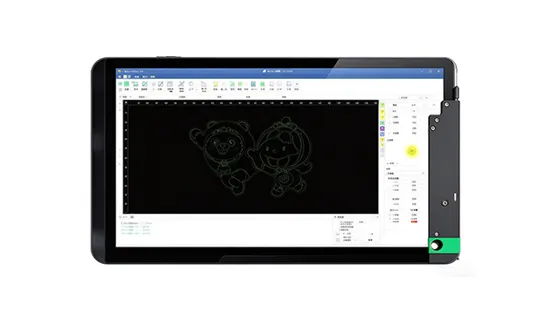

The separate control terminal provides access to machine settings beside the platform. The documentation emphasizes an intuitive interface and straightforward parameter adjustment.
Small-Batch Production Focus
An intuitive user interface and simple parameter settings allow beginners to quickly master the machine, reducing training costs.
Technical Specifications
| Item | Specification | Selection Note |
|---|---|---|
| Product Name | Laser Engraving Machine | Despark product designation |
| Machine Model | 6060SL | SL platform series |
| Working Area | 600 × 600 mm | Check part outlines and nesting requirements |
| Maximum Rapid Traverse Speed | ≤60 m/min | Non-cutting movement speed |
| Cutting Speed | 0–50 m/min, depending on material and thickness | Application-dependent cutting conditions |
| Laser Wavelength | 1070–1080 nm | As listed in the supplied documentation |
| Power Supply | AC 380 V, 50/60 Hz | Confirm compatibility with the installation site |
Optional Equipment List
| Parameter | Available Options |
|---|---|
| Laser Power | 1500W / 2000W / 3000W / 6000W |
| Servo Motor Power | 2000W / 3000W |
| Gantry Beam Material | Iron / Aluminum |
| Machine Bed Structure | Welded Plate Structure / Welded Tube Structure |
| Linear Guide | HGW20 / HGW25 / HGW30 / HGW35 |
| Gearbox Brand | Motovario / Nidec |
| Cutting Head Power (Matched to Laser Source) | 1500W / 2000W / 3000W / 6000W |

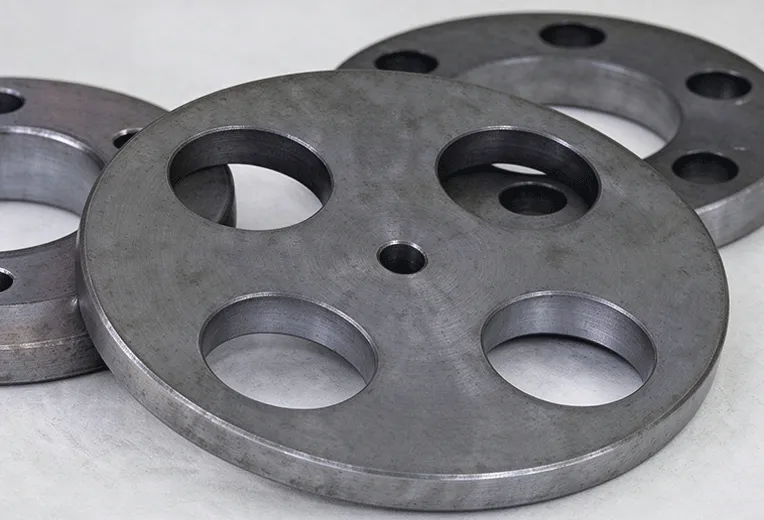

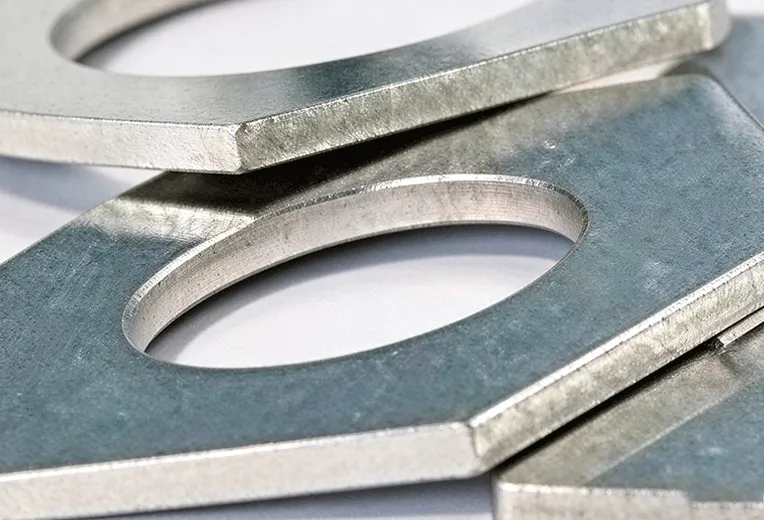

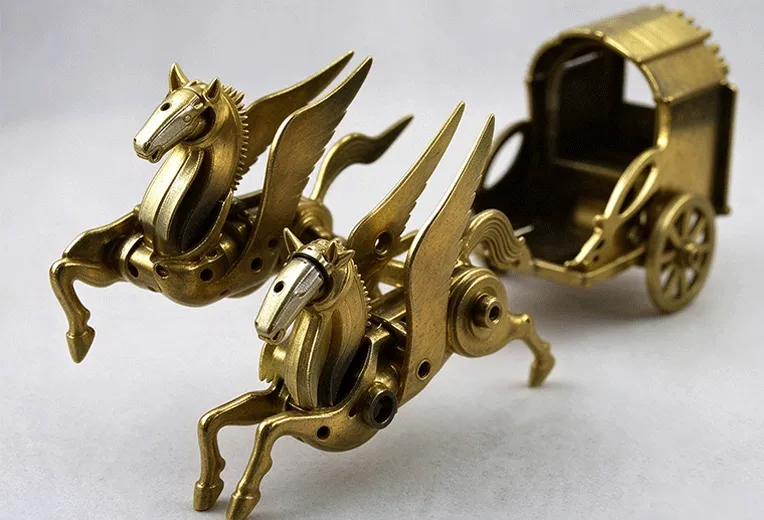

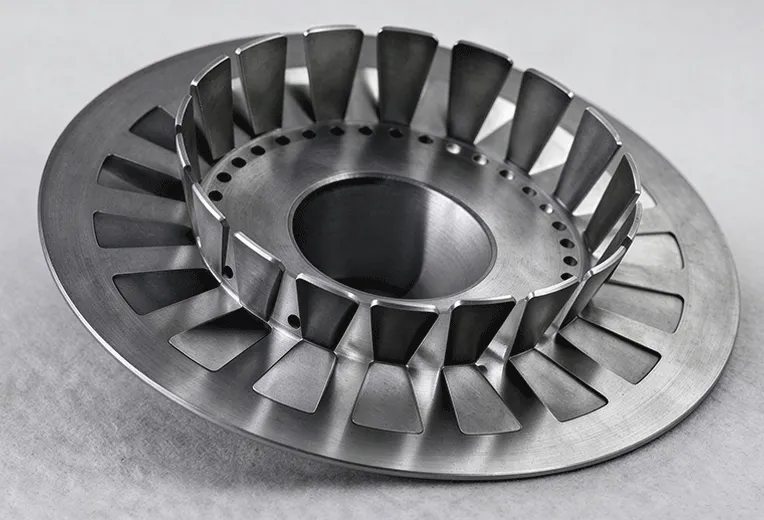

Sample Display
Industries We Serve
-
Advertising & Display Equipment
-

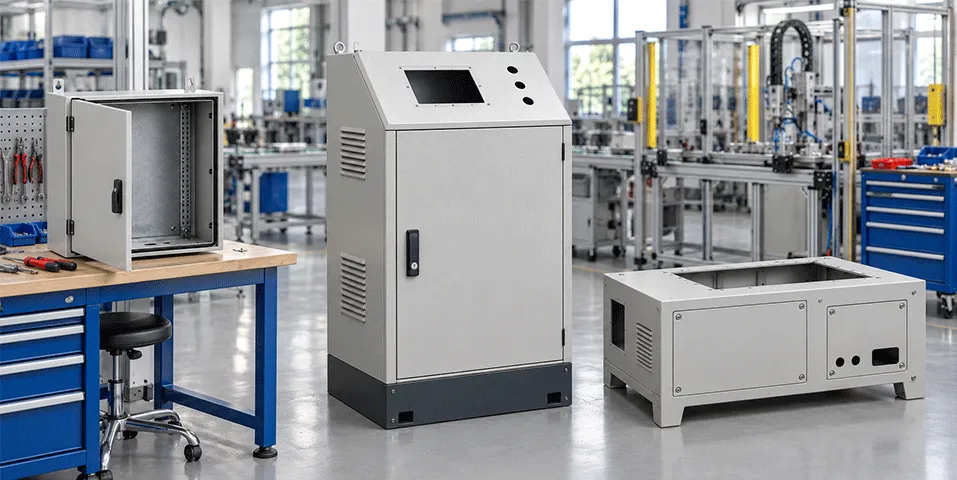

Automation Equipment
Product Purchasing Service
Together, We Look Forward To Creating A Long-Lasting And Reliable Partnership.
After-Sales Service System
- We Firmly Believe That Delivery Is Not The End Of Service, But The Beginning Of A Long-Term Partnership.
- Disu Laser Intelligent Equipment Offers Worry-Free After-Sales Support Through A Comprehensive Remote Service System That Covers The Entire Equipment Lifecycle—From Installation And Commissioning To Technical Support, And From Routine Maintenance To Rapid-Response Repairs—Ensuring Continuous, Stable, And Efficient Operation For Our Customers.
- It Is Our Responsibility To Ensure That Every Piece Of Equipment Remains In Peak Condition.
Quality Assurance
- The Warranty Period For The Equipment’s Laser And Chiller Is Two Years.
- The Warranty Period For The Remaining Components Is One Year (Excluding Consumables Such As Delivery Fibers And Lenses, Damage Caused By Force Majeure Events—Such As Natural Disasters Or War—As Well As Improper Operation Or Human-Induced Damage).
- Services Such As Free Technical Consultation And Software Upgrades Are Included. Technical Support Is Available Any Time To Address Any Equipment Malfunctions Or Issues.
