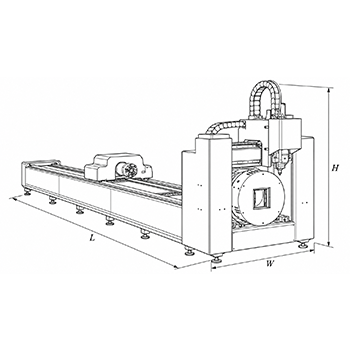

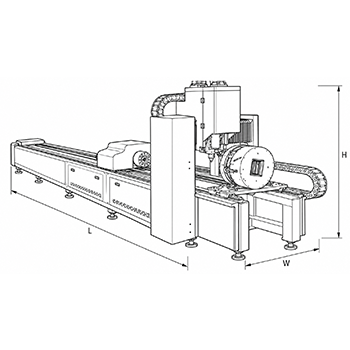

Horizontal Bed Layout
The horizontal machine arrangement provides access for tube loading, positioning and part removal. It allows buyers to assess material flow alongside the surrounding workshop equipment.
Laser Tube Cutting Machine – Horizontal Type
Horizontal tube processing with BLT4 cutting technology, a Raycus laser source and FSCUT control. Select the T Series model and laser power around your tube profiles and production requirements.
Description
The T Series horizontal fiber laser tube cutting machine combines a longitudinal machine bed, tube clamping and a CNC-controlled cutting head. Its layout supports access to the tube processing area and material handling along the bed.
During processing, the clamping and motion system positions the tube while the laser follows the programmed cutting path. The non-contact process supports tube profiling, hole cutting and angled cuts according to the selected machine configuration.
Main Configuration
Core Features
Rigid Machine Structure
The product documentation emphasizes bed rigidity and stable operation for continuous long-tube processing. This structure provides the mechanical foundation for the tube positioning and cutting system.
Round, Square and Shaped Tube Processing
The T Series is documented for round, square and shaped metal tubes. This supports manufacturers with different tube cross-sections, subject to the selected model’s processing limits.
Multiple Tube Cutting Operations
The machine supports tube profiling, hole cutting and angled cuts. Buyers can submit component drawings to confirm the required cutting operations and configuration.
Four Laser Power Options
Choose from 1500, 2000, 3000 and 6000 W laser power options. Selection should reflect material, wall thickness and production requirements, with the final model and power combination confirmed for the application.
Documented Cutting and Control Components
The listed BLT4 cutting head, Raycus laser source and FSCUT control system provide a clear basis for configuration review. Buyers can check the supplied component specifications before finalizing the equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Model | 6012T / 6020T / 6024T / 6035T / 6045T |
| Laser Power | 1500W / 2000W / 3000W / 6000W |
| W-Axis No-Load Rotation Speed | 200 rpm |
| X/Y-Axis Positioning Accuracy | ±0.03 mm/min* |
| X/Y-Axis Repeat Positioning Accuracy | ±0.02 mm/min* |
| Maximum X/Y-Axis Combined Positioning Speed | 120 m/min |
| Maximum X-Axis Positioning Speed | 100 m/min |
| Laser Wavelength | 1064 nm |
| Maximum Acceleration | 1.5 G |
Optional Equipment List
| Chuck Model | 120mm | 160mm | ||
|---|---|---|---|---|
| Chuck Type | Zero-Tailing Material / Zero-Waste Material | Non-Zero End-Of-Run Material | ||
| Laser Power | 1500W | 2000W | 3000W | 6000W |
| Laser Focusing Mode | Manual Focusing | Autofocus | ||
| Servo Motor | Six Sets Of High-Speed Servo Motors (One 6.4 KW, One 2.4 KW, One 17 KW, One 1 KW, One 750 W, And One 400 W With Brake). |
Six Sets Of Medium-Speed Servo Motors (Two 2.4 KW Sets; One 17 KW Set; One 1 KW Set; One 750 W Set; One 400 W Set With Brake) |
||
| Following Discharge Rack | Have | None | ||
| Follow-Up Feeding Rack | Have | None | ||
| Evasion Mode | Servo Retraction | Pneumatic Retraction | ||

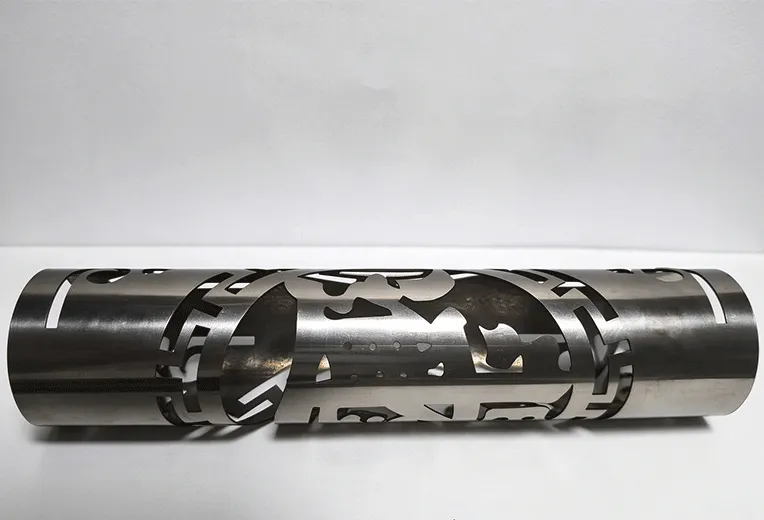

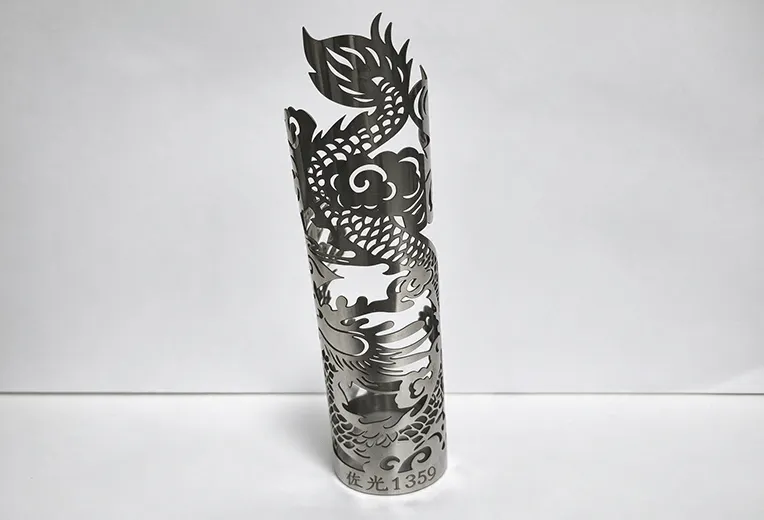

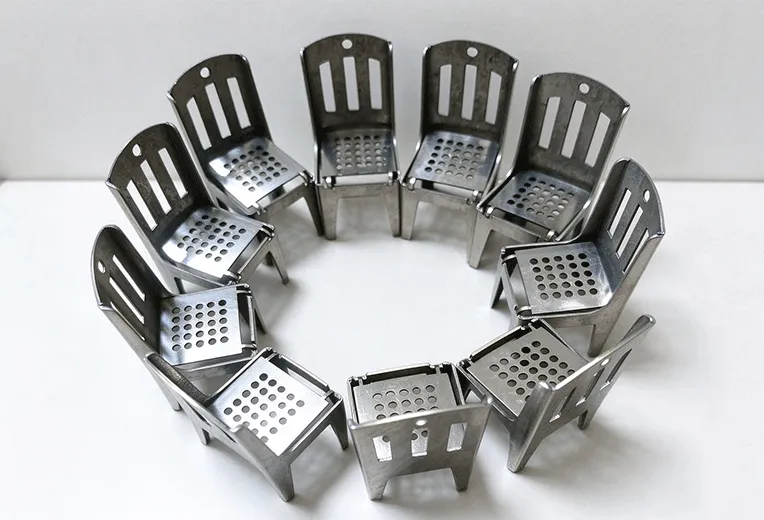

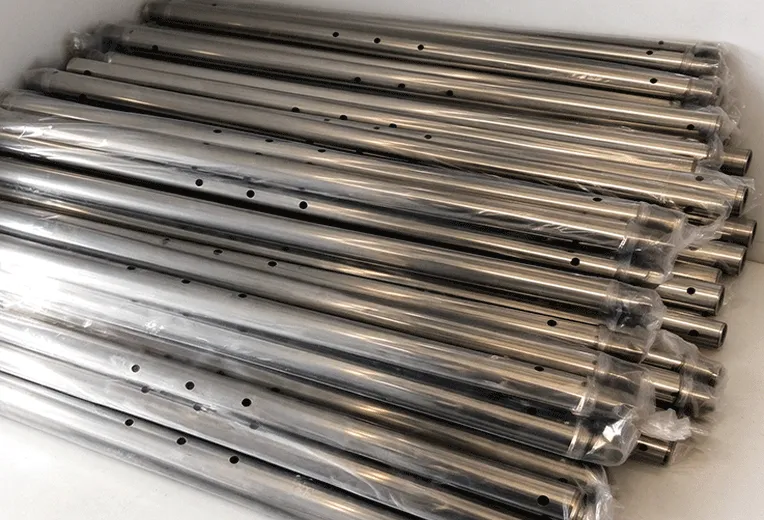

Sample Display
