Combined Sheet and Tube Capability
The LT Series integrates sheet cutting and tube processing in one machine. This suits manufacturers whose products require both flat components and tubular parts.

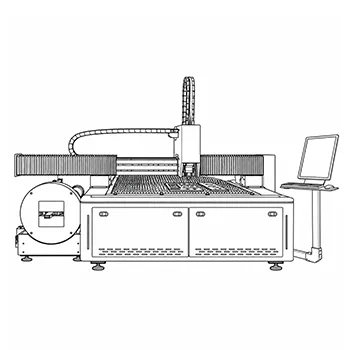

Laser Cutting Machine – Tube & Plate Combo Machine
Combine sheet and tube cutting within one LT Series machine. Explore 1500–6000 W options for mixed-component production, with Raycus laser technology, a dedicated tube chuck and FSCUT control.
Description
The LT Series combines a flat sheet cutting table with a tube processing assembly. Manufacturers can use the sheet section for plate components and the tube section for compatible round, square, rectangular and shaped tubes.The tube chuck holds the workpiece for tube processing, while the machine’s cutting and motion system follows the programmed part geometry. The documented main configuration includes a Ruika tube chuck, Raycus laser source and FSCUT control system.
The tube chuck holds the workpiece for tube processing, while the machine’s cutting and motion system follows the programmed part geometry. The documented main configuration includes a Ruika tube chuck, Raycus laser source and FSCUT control system.
Main Configuration
Core Features
Multiple Tube Profile Applications
The documentation lists round, square, rectangular and shaped tubes. Buyers can submit profile drawings to confirm clamping suitability and the applicable processing range.
Easy Switching & Flexible Production
Easy switching and flexible production, suitable for small-batch, multi-variety products with mixed sheet and tube structures.
Four Laser Power Options
Available power options are 1500, 2000, 3000 and 6000 W. Selection should consider both sheet thickness requirements and tube processing needs.
High Automation & Efficiency
Can be equipped with automatic loading and unloading systems to enable semi-unmanned production.
Optional Material Handling Systems
That automatic loading and unloading systems can be configured. Their suitability and supply scope must be reviewed for the selected materials, workpieces and production process.
Technical Specifications
| Parameter | Sheet Cutting | Tube Cutting |
|---|---|---|
| Laser Power | 1500W / 2000W / 3000W / 6000W | 1500W / 2000W / 3000W / 6000W |
| Maximum Travel Speed | 90 m/min | 60 m/min |
| X/Y-Axis Positioning Accuracy | ±0.03 mm/min* | ±0.03 mm/min* |
| X/Y-Axis Repeat Positioning Accuracy | ±0.02 mm/min* | ±0.02 mm/min* |
| Maximum X/Y-Axis Combined Positioning Speed | 150 m/min | 150 m/min |
| Maximum X/Y-Axis Positioning Speed | 120 m/min | 120 m/min |
| Laser Wavelength | 1064 nm | 1064 nm |
| Maximum Acceleration | 1.5 G | 1.0 G |
Optional Equipment List
| Parameter | Available Options |
|---|---|
| Laser Power | 1500W / 2000W / 3000W / 6000W |
| Servo Motor Power | 2000W / 3000W |
| Gantry Beam Material | Iron / Aluminum |
| Machine Bed Structure | Welded Plate Structure / Welded Tube Structure |
| Linear Guide | HGW20 / HGW25 / HGW30 / HGW35 |
| Gearbox Brand | Motovario / Nidec |
| Cutting Head Power (Matched to Laser Source) | 1500W / 2000W / 3000W / 6000W |

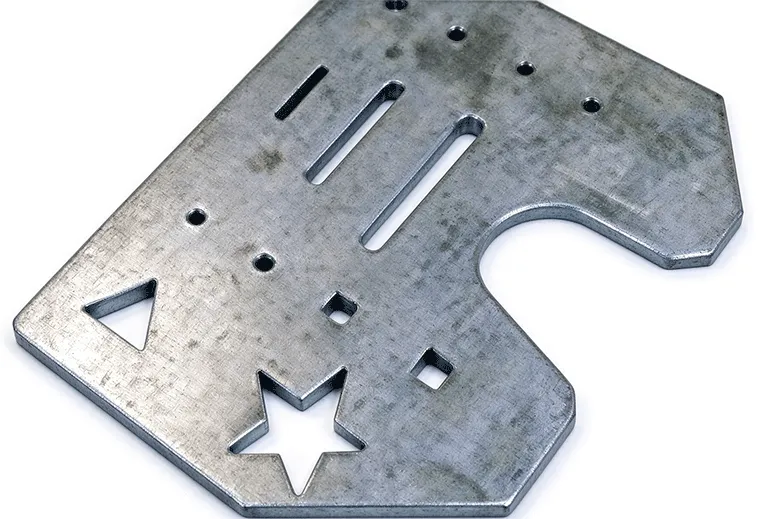

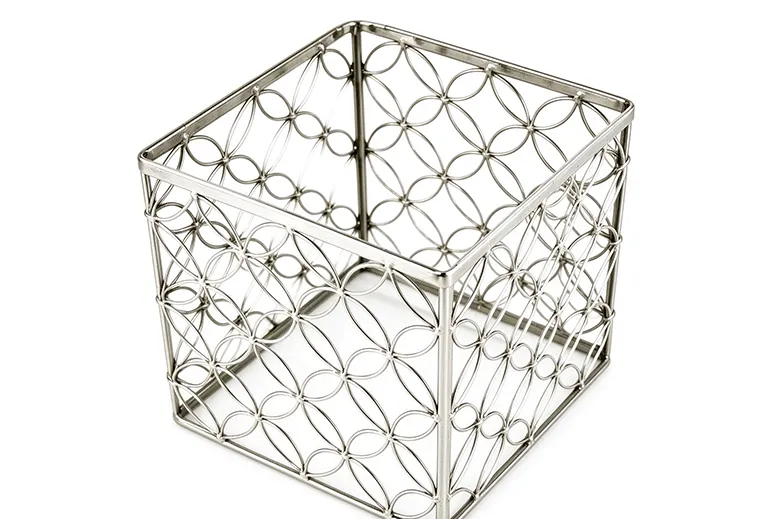

Sample Display
Industries We Serve
-
Furniture Manufacturing
-
Metal Fabrication & Processing
Product Purchasing Service
Together, We Look Forward To Creating A Long-Lasting And Reliable Partnership.
After-Sales Service System
- We Firmly Believe That Delivery Is Not The End Of Service, But The Beginning Of A Long-Term Partnership.
- Disu Laser Intelligent Equipment Offers Worry-Free After-Sales Support Through A Comprehensive Remote Service System That Covers The Entire Equipment Lifecycle—From Installation And Commissioning To Technical Support, And From Routine Maintenance To Rapid-Response Repairs—Ensuring Continuous, Stable, And Efficient Operation For Our Customers.
- It Is Our Responsibility To Ensure That Every Piece Of Equipment Remains In Peak Condition.
Quality Assurance
- The Warranty Period For The Equipment’s Laser And Chiller Is Two Years.
- The Warranty Period For The Remaining Components Is One Year (Excluding Consumables Such As Delivery Fibers And Lenses, Damage Caused By Force Majeure Events—Such As Natural Disasters Or War—As Well As Improper Operation Or Human-Induced Damage).
- Services Such As Free Technical Consultation And Software Upgrades Are Included. Technical Support Is Available Any Time To Address Any Equipment Malfunctions Or Issues.
