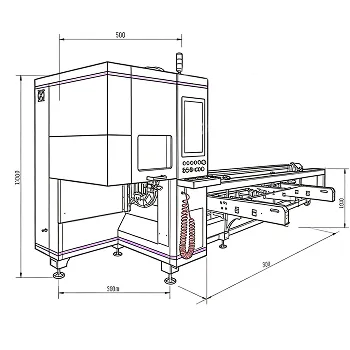

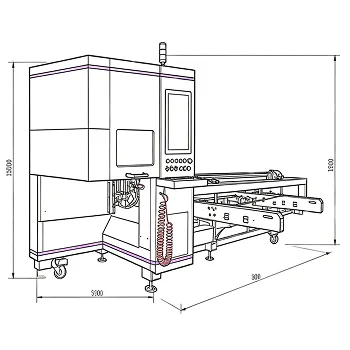

Two Material Handling Configurations
Select semi-automatic chain loading for shaped & small/medium tubes, or fully automatic loading/unloading for round and square tubes. Choose the handling setup to match your production profiles.
Laser Tube Cutting Machine – Side-Loading
GS Series tube cutting with configurable laser power, pneumatic chucks and material handling. Choose chain-assisted semi-automatic loading or fully automatic loading and unloading to match your tube profiles.
Description
The GS Series combines a dedicated tube cutting control system, fiber laser processing and pneumatic tube clamping. Its plate-and-tube welded bed incorporates square tubes within the steel plate structure to support machine stability during production.
The dedicated cutting system coordinates automated control and cutting paths. A pneumatic precision chuck holds and positions the tube, while the selected loading configuration determines how material enters and leaves the machine.

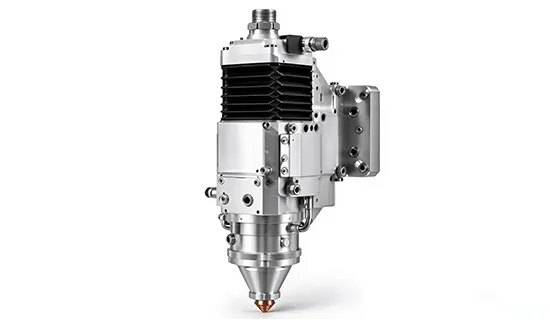

Main Configuration
Core Features
Despark-Developed Chain Loading
The semi-automatic version uses a chain loading system developed by Despark. Its stock capacity varies with tube dimensions, allowing loading requirements to be assessed against the buyer’s actual materials.
Reinforced Welded Bed Structure
The bed combines steel plates with internal square tubes. This plate-and-tube welded construction provides a stable structural foundation for tube cutting operations.

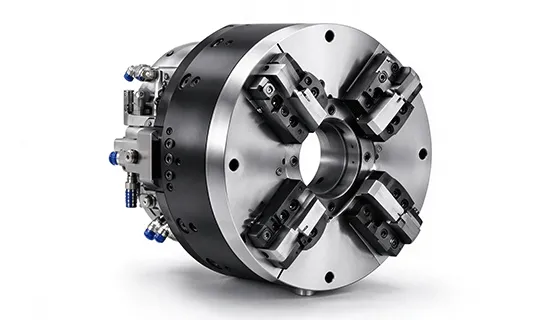

Precision Pneumatic Clamping
Pneumatic precision chucks hold and position the tube during processing. Chuck size and remnant requirements can be reviewed together when defining the machine configuration.

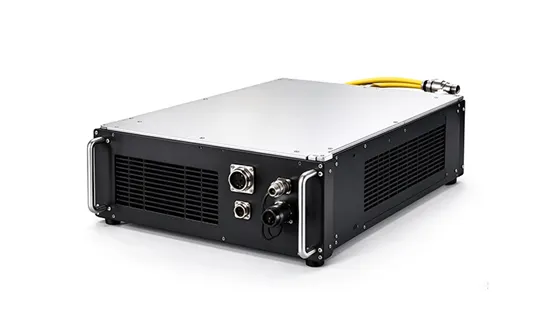

Four Laser Power Options
Available laser power options are 1500, 2000, 3000 and 6000 W. Selection should reflect the material, wall thickness and processing requirements rather than power alone.
Configurable Tube Handling and Motion
Optional follow-up loading and unloading racks, servo packages and avoidance mechanisms allow the equipment configuration to be matched to the intended handling process.
Technical Specifications
| Item | Specification / Configuration | Selection Value |
|---|---|---|
| Product Series | GS Series | Dedicated tube cutting equipment |
| Laser Power Options | 1500 / 2000 / 3000 / 6000 W | Select according to material and processing requirements |
| Standard Raw Tube Length | Up to 6200 mm | Review longer stock as a customization request |
| Documented Materials | Carbon steel, stainless steel | Confirm other materials for the intended application |
| Semi-Automatic Handling | Despark-developed chain loading | For shaped tubes and small to medium-sized tubes |
| Fully Automatic Handling | Automatic loading and unloading for round and square tubes | For compatible round and square tube production |
| Chuck Size Options | 120 / 160 / 240 mm | Confirm the actual clamping range for the selected chuck |
| Semi-Automatic Loading Examples | Up to 40 × Ø20 mm tubes or 20 × Ø40 mm tubes | Actual capacity depends on tube dimensions |
Optional Equipment List
| Chuck Model | 120mm | 160mm | ||
|---|---|---|---|---|
| Chuck Type | Zero-Tailing Material / Zero-Waste Material | Non-Zero End-Of-Run Material | ||
| Laser Power | 1500W | 2000W | 3000W | 6000W |
| Laser Focusing Mode | Manual Focusing | Autofocus | ||
| Servo Motor | Six Sets Of High-Speed Servo Motors (One 6.4 KW, One 2.4 KW, One 17 KW, One 1 KW, One 750 W, And One 400 W With Brake). |
Six Sets Of Medium-Speed Servo Motors (Two 2.4 KW Sets; One 17 KW Set; One 1 KW Set; One 750 W Set; One 400 W Set With Brake) |
||
| Following Discharge Rack | Have | None | ||
| Follow-Up Feeding Rack | Have | None | ||
| Evasion Mode | Servo Retraction | Pneumatic Retraction | ||

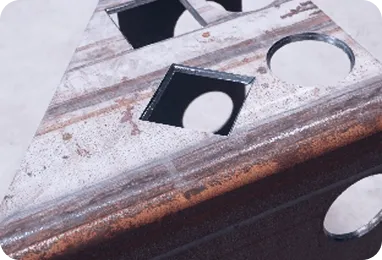

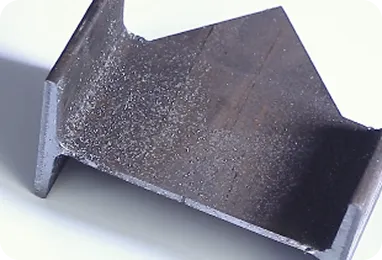

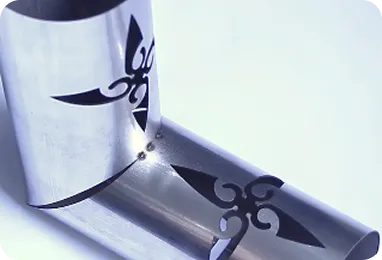

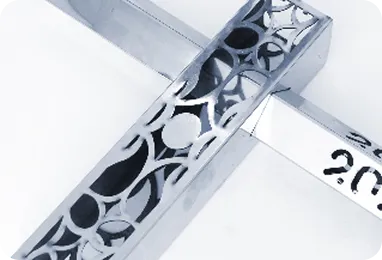

Sample Display
Industries We Serve
-
Furniture Manufacturing
-
Fitness Equipment
-

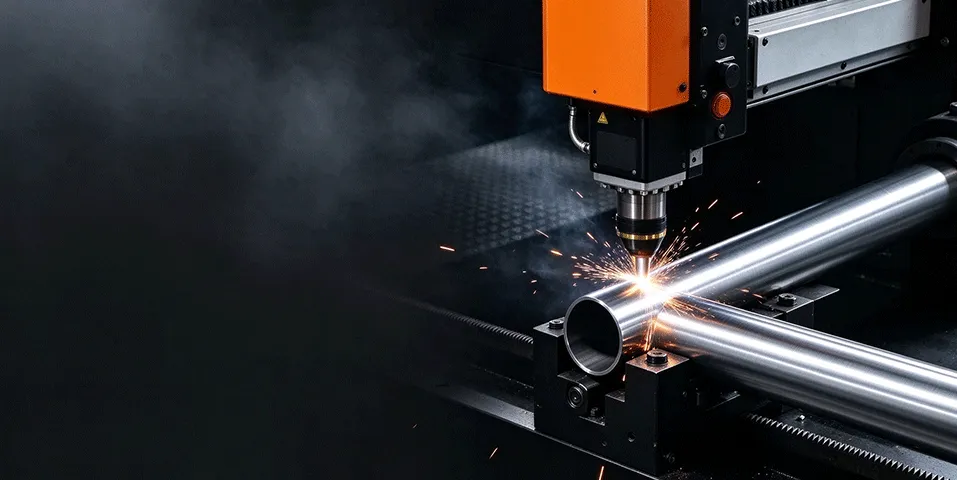

Steel Pipe & Tube Processing
-
