Air-Cooled Laser Welding Machine

Air-Cooled Laser Welding Machine

Handheld metal welding without a water chiller. Explore 900–2000 W options with a Raycus laser source, preset welding parameters and a mobile cabinet for workshop and repair applications.

Description

This handheld air-cooled laser welding machine brings together the laser source, controls and cooling system in a wheeled cabinet. Eliminating the water chiller removes cooling-water filling and water-circuit maintenance from the equipment setup.

The operator guides the 23T handheld welding head along the joint. The touchscreen provides access to preset welding parameters for different materials, while the documented single-wire feeder supports filler-wire delivery.

The handle and swivel casters help reposition the equipment between work areas. Its 10 m fiber provides flexibility when arranging the cabinet and workpiece, subject to the approved cable routing and operating conditions.

Get a Quote

Main Configuration

Ruike Laser
Ruike Laser
23T Laser Welding Joint
23T Laser Welding Joint
Super-strong single wire feeding machine
Super-strong single wire feeding machine

Core Features

01

Air Cooling Without a Water Chiller

The air-cooled design eliminates the separate water-cooling circuit. This removes cooling-water management from routine equipment care while retaining the need for the specified ventilation and operating conditions.

02

Multiple Power Options

Equipped with a Raycus laser source for stable output, suitable for welding thin to medium-thickness metal sheets.

03

Preset Material Parameters

The touchscreen offers preset settings for various metals with one-touch access. The lightweight handheld welding torch delivers smooth, consistent welds.

04

Easy Maintenance

Eliminates water-leakage risks and simplifies routine maintenance. Suitable for on-site welding of sheet metal, doors, windows, and machinery components.

05

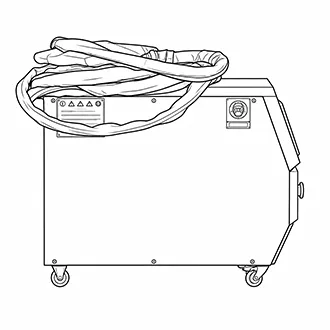

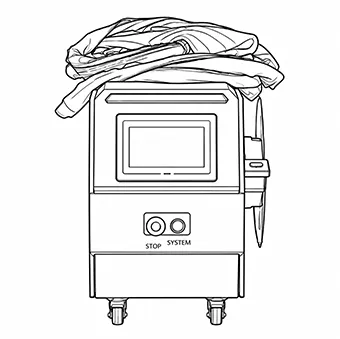

Mobile Cabinet with 10 m Fiber

A handle, swivel casters and a 10 m delivery fiber support flexible equipment positioning. The cabinet can be arranged around the work area according to cable routing and site requirements.

06

Standard 220V Power Supply

Operates on a standard 220V household power supply without three-phase industrial electricity, making it suitable for workshops and construction sites.

Technical Specifications

Item LT-900W LT-1200W LT-1500W LT-2000W
Laser Output Power 900 W 1200 W 1500 W 2000 W
Listed Total Machine Power 4 kW 5 kW 6 kW 8 kW
Laser Wavelength 1080 ±10 nm 1080 ±10 nm 1080 ±10 nm 1080 ±10 nm
Welding Speed Range 0–160 mm/s 0–160 mm/s 0–160 mm/s 0–160 mm/s
Cooling Method Air cooling Air cooling Air cooling Air cooling
Fiber Length 10 m 10 m 10 m 10 m
Power Supply 220 V / 50 Hz 220 V / 50 Hz 220 V / 50 Hz 220 V / 50 Hz

Optional Equipment List

Parameter 1500W 2000W 3000W 6000W
Laser Power 1500W 2000W 3000W 6000W
Total Power (Corresponding to Laser Power) 6000W 8000W 12000W 24000W
Cooling Method Air Cooling Air Cooling Water Cooling Water Cooling

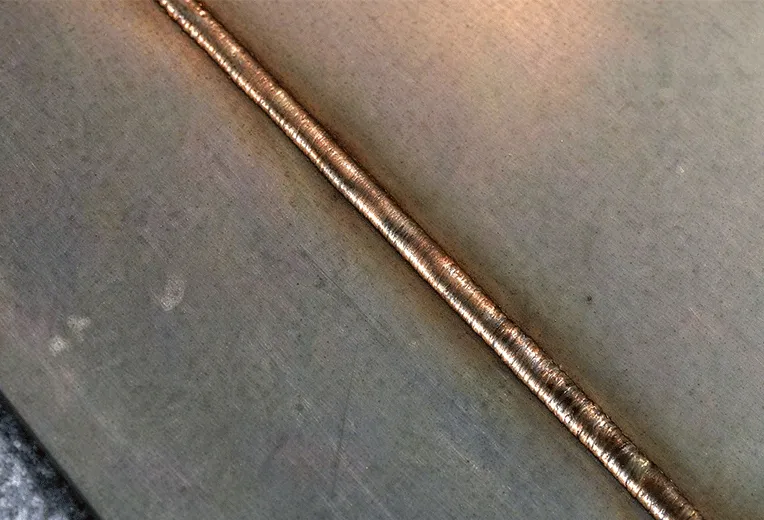

Sample Display

Industries We Serve

  • Port Shipping

  • Interior Door

  • Aluminum Pergola

  • Bridge Engineering

View More

Product Purchasing Service

Together, We Look Forward To Creating A Long-Lasting And Reliable Partnership.

After-Sales Service System

  • We Firmly Believe That Delivery Is Not The End Of Service, But The Beginning Of A Long-Term Partnership.
  • Disu Laser Intelligent Equipment Offers Worry-Free After-Sales Support Through A Comprehensive Remote Service System That Covers The Entire Equipment Lifecycle—From Installation And Commissioning To Technical Support, And From Routine Maintenance To Rapid-Response Repairs—Ensuring Continuous, Stable, And Efficient Operation For Our Customers.
  • It Is Our Responsibility To Ensure That Every Piece Of Equipment Remains In Peak Condition.

Quality Assurance

  • The Warranty Period For The Equipment’s Laser And Chiller Is Two Years.
  • The Warranty Period For The Remaining Components Is One Year (Excluding Consumables Such As Delivery Fibers And Lenses, Damage Caused By Force Majeure Events—Such As Natural Disasters Or War—As Well As Improper Operation Or Human-Induced Damage).
  • Services Such As Free Technical Consultation And Software Upgrades Are Included. Technical Support Is Available Any Time To Address Any Equipment Malfunctions Or Issues.

Leave a Message

To better serve you, please leave your contact information and purchasing requirements. We will get back to you and provide you with personalized solutions and excellent service.

    *We respect your confidentiality and all information are protected. We will only use your information to respond to your inquiry and will never send unsolicited emails or promotional messages.
