Single Working Table
One working table provides a defined area for sheet placement, cutting and part removal. This arrangement is relevant to workshops organizing small- and medium-batch sheet processing.
Laser Cutting Machine – Single Platform Type
A single-table platform for metal sheet cutting and blanking. Explore L Series models with 1500–6000 W laser power, automatic focusing and FSCUT control to match your production requirements.
Description

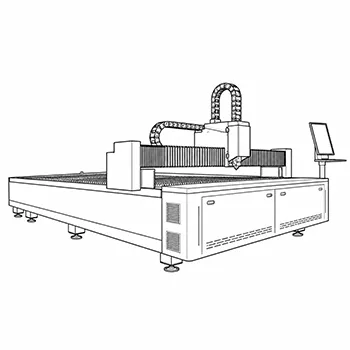

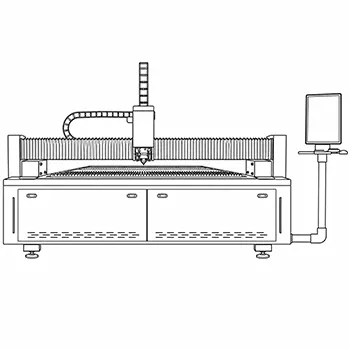

The L Series single platform fiber laser cutting machine combines a welded bed with a gantry-mounted cutting head and one working table. Its open arrangement provides access to the processing area for sheet placement and finished-part removal.During operation, the CNC system directs the cutting head along the programmed path. The Raycus source supplies laser energy, while the automatic-focus cutting head adjusts focus as part of the cutting setup.
The welded bed is described with annealing or aging treatment to support structural rigidity and dimensional stability. The separate operating terminal provides access to the control interface beside the machine.

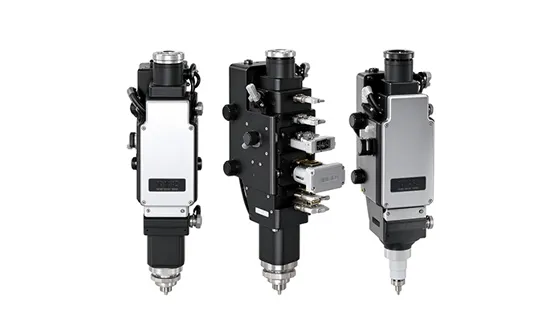

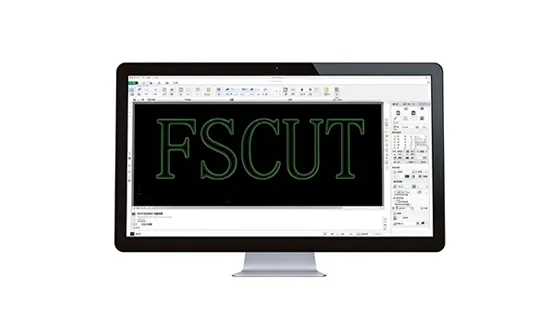

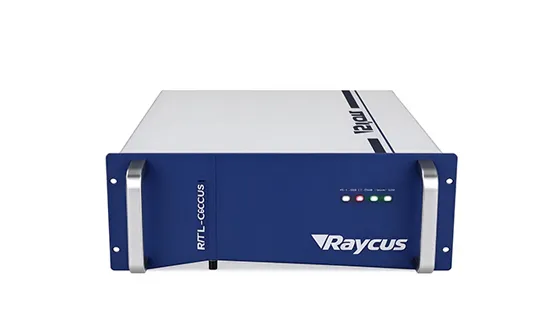

Main Configuration
Core Features
Stable Structure
The fully welded machine bed undergoes annealing and aging treatment, ensuring high rigidity and long-term dimensional stability.
High Speed & Efficiency
Rapid traverse speed of ≥140 m/min and high acceleration of 1.2G enable fast flying cutting of thin sheets.
Small Footprint & High Precision
The integrated compact design requires minimal floor space and allows flexible movement.
Four Laser Power Options
The L Series lists 1500, 2000, 3000 and 6000 W options. Power selection should reflect material, thickness, part geometry and production requirements rather than power alone.
Intelligent & User-Friendly
Equipped with a bus-based CNC system and an auto-focus cutting head for simple and convenient operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Model | 3015L / 4015L / 4020L / 6020L / 6025L / 8025L / 13025L |
| Laser Power | 1500W / 2000W / 3000W / 6000W |
| Maximum Z-Axis Travel | 150 mm |
| X/Y-Axis Positioning Accuracy | ±0.03 mm/min* |
| X/Y-Axis Repeat Positioning Accuracy | ±0.02 mm/min* |
| Maximum X/Y-Axis Combined Positioning Speed | 150 m/min |
| Maximum X/Y-Axis Positioning Speed | 120 m/min |
| Laser Wavelength | 1064 nm |
| Maximum Acceleration | 1.5 G |
Optional Equipment List
| Parameter | Available Options |
|---|---|
| Laser Power | 1500W / 2000W / 3000W / 6000W |
| Servo Motor Power | 2000W / 3000W |
| Gantry Beam Material | Iron / Aluminum |
| Machine Bed Structure | Welded Plate Structure / Welded Tube Structure |
| Linear Guide | HGW20 / HGW25 / HGW30 / HGW35 |
| Gearbox Brand | Motovario / Nidec |
| Cutting Head Power (Matched to Laser Source) | 1500W / 2000W / 3000W / 6000W |
Sample Display
Industries We Serve
-
Outdoor Facilities
-

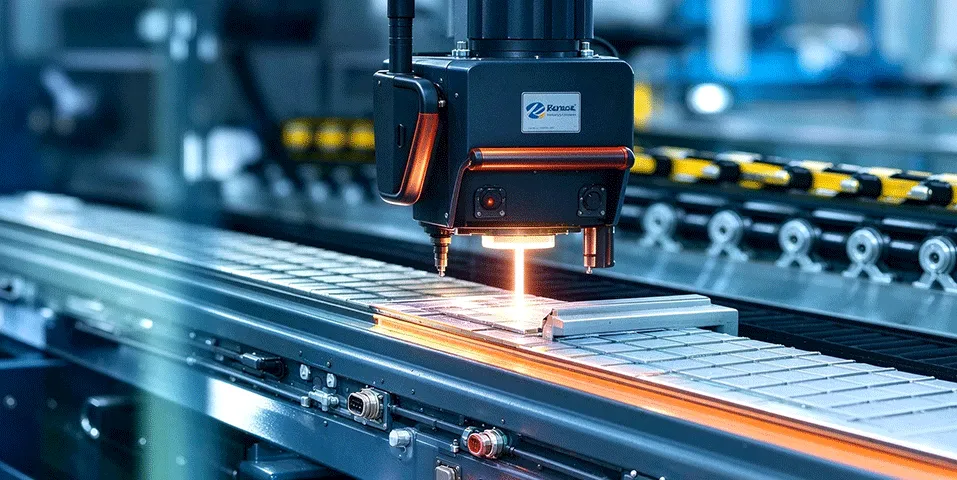

Steel Pipe & Tube Processing
-
Furniture Manufacturing
-
Automotive Industry
Product Purchasing Service
Together, We Look Forward To Creating A Long-Lasting And Reliable Partnership.
After-Sales Service System
- We Firmly Believe That Delivery Is Not The End Of Service, But The Beginning Of A Long-Term Partnership.
- Disu Laser Intelligent Equipment Offers Worry-Free After-Sales Support Through A Comprehensive Remote Service System That Covers The Entire Equipment Lifecycle—From Installation And Commissioning To Technical Support, And From Routine Maintenance To Rapid-Response Repairs—Ensuring Continuous, Stable, And Efficient Operation For Our Customers.
- It Is Our Responsibility To Ensure That Every Piece Of Equipment Remains In Peak Condition.
Quality Assurance
- The Warranty Period For The Equipment’s Laser And Chiller Is Two Years.
- The Warranty Period For The Remaining Components Is One Year (Excluding Consumables Such As Delivery Fibers And Lenses, Damage Caused By Force Majeure Events—Such As Natural Disasters Or War—As Well As Improper Operation Or Human-Induced Damage).
- Services Such As Free Technical Consultation And Software Upgrades Are Included. Technical Support Is Available Any Time To Address Any Equipment Malfunctions Or Issues.
