Air Cooling Without External Water
The air-cooled configuration removes the need to connect a water supply or external water chiller. This simplifies equipment placement where a cooling-water connection would be inconvenient.

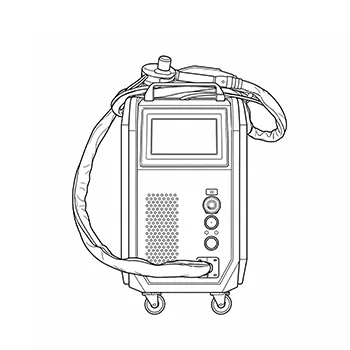

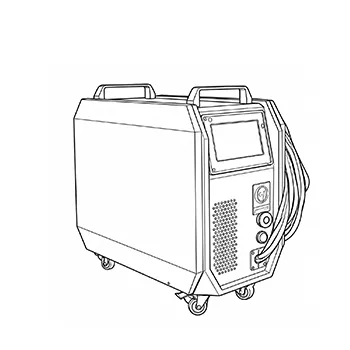

Laser Cleaning Machine - Air-Cooled 1200W
Remove rust, paint and surface contamination with a 1200W pulsed fiber configuration. A mobile chassis, handheld cleaning head and 10 m fiber cable support cleaning across different workpieces.
Description
The LT-1200W combines a Raycus air-cooled pulsed laser source, handheld cleaning head and cleaning control system. The operator selects suitable settings and guides the head across the treatment area to remove the target surface layer.
This handheld laser cleaner is described for light to moderate contamination, including rust, oil, oxide layers, paint and coatings. Cleaning results depend on the substrate, contamination thickness, settings and movement of the head. A representative sample should establish the required surface finish before processing production parts.
Main Configuration
Core Features
1200W Pulsed Output
Controllable energy and moderate cleaning power, suitable for removing light to moderate contamination.
Air-Cooled Design
No water-cooling system required. Lightweight and easy to deploy in outdoor settings and workshops.
Non-Destructive Precision Cleaning
Non-contact cleaning preserves the substrate surface without causing deformation or damage.
Versatile Cleaning
Efficiently removes rust, oil, oxide layers, paint, coatings, and other stubborn residues.
Energy Efficiency & Easy Maintenance
No consumables, low energy consumption, and simple operation. Environmentally friendly, pollution-free cleaning helps reduce long-term operating costs.
Technical Specifications
| Parameter | LT-1200W |
|---|---|
| Laser Power | 1200 W |
| Laser Type | Pulsed fiber laser |
| Laser Wavelength | 1080 ± 10 nm |
| Published Cleaning Rate | 0–160 mm/s |
| Cooling Method | Air cooling |
| Cleaning Width | 0–300 mm |
| Fiber Length | 10 m |
| Supply Voltage / Frequency | 220 V / 50 Hz |
| Overall Dimensions | 600 × 300 × 580 mm |
| Published Machine Weight | 32 kg |
Optional Equipment List
| Laser Power | 1200W | 1500W | 2000W | 3000W | 6000W |
|---|---|---|---|---|---|
| Cooling Method | Air Cooling | Air Cooling | Water Cooling | Water Cooling | Water Cooling |
Sample Display
Industries We Serve
-
Port Shipping
-
Bridge Engineering
-
Aluminum Pergola
-
Interior Door
Product Purchasing Service
Together, We Look Forward To Creating A Long-Lasting And Reliable Partnership.
After-Sales Service System
- We Firmly Believe That Delivery Is Not The End Of Service, But The Beginning Of A Long-Term Partnership.
- Disu Laser Intelligent Equipment Offers Worry-Free After-Sales Support Through A Comprehensive Remote Service System That Covers The Entire Equipment Lifecycle—From Installation And Commissioning To Technical Support, And From Routine Maintenance To Rapid-Response Repairs—Ensuring Continuous, Stable, And Efficient Operation For Our Customers.
- It Is Our Responsibility To Ensure That Every Piece Of Equipment Remains In Peak Condition.
Quality Assurance
- The Warranty Period For The Equipment’s Laser And Chiller Is Two Years.
- The Warranty Period For The Remaining Components Is One Year (Excluding Consumables Such As Delivery Fibers And Lenses, Damage Caused By Force Majeure Events—Such As Natural Disasters Or War—As Well As Improper Operation Or Human-Induced Damage).
- Services Such As Free Technical Consultation And Software Upgrades Are Included. Technical Support Is Available Any Time To Address Any Equipment Malfunctions Or Issues.
