Air Cooling and Mobile Operation
The handheld series removes the separate water chiller and adds a handle and casters for movement between work areas.
Laser Welding Machine
Air-cooled handheld and water-cooled CNC laser welding machines for hardware, sheet metal parts and repeated multi-point welding.
Built for Handheld and CNC Laser Welding
Despark’s laser welding machine range brings together mobile handheld welding, gantry galvo welding and platform-based CNC welding. The air-cooled handheld series combines a lightweight torch, stored material settings and a wheeled cabinet without a separate water chiller. The gantry galvo machine uses a rigid gantry and a scanning head for programmable multi-point welding. The platform machine combines a CNC worktable, stored process parameters and custom fixtures for repeated part production. With air-cooled and water-cooled configurations, this fiber laser welding machine range serves hardware fabrication, doors and windows, kitchen and bathroom products, and precision sheet metal work.
Our Laser Welding Machine Lineup
Air-Cooled Laser Welding Machine
The Despark air-cooled laser welding machine combines handheld welding with a cooling design that requires no water chiller. A handle, swivel casters and a 10 m delivery fiber support positioning around workshop tasks and on-site repair work.
View More

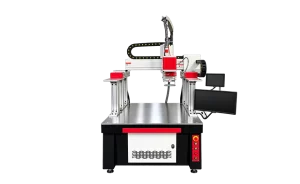

Gantry Galvo Laser Welding Machine
The Despark Gantry Galvo Laser Welding Machine combines a rigid gantry structure with galvanometer scanning for programmable, multi-point welding. It is designed for manufacturers processing repeated weld patterns, grouped components and precision hardware.
View More

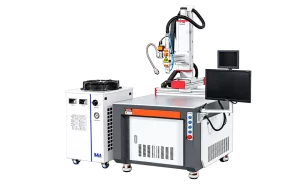

Platform-Type Laser Welding Machine
The Despark Platform-Type Laser Welding Machine combines a CNC working table, programmable welding paths and stored process settings for repeated component welding. It is designed for hardware, kitchen and bathroom products, and precision sheet metal manufacturers that need a fixture-based production setup.
View More
Technical Specifications
Custom Configurations Available
Power options, fixtures and motion configurations support different welding tasks, from mobile repair to repeated multi-point production.
| Configuration Item | Available Scope |
| Handheld laser power | 900 / 1200 / 1500 / 2000 W |
| Gantry / platform laser power | 1500 / 2000 / 2500 / 3000 W |
| Platform fixtures | Custom workholding for the part and joint arrangement |
| Gantry motion | Optional multi-axis configuration |
| Gantry integration | Interfaces for compatible fixtures and production equipment |
| Cooling format | Air cooling for handheld; water cooling for gantry and platform machines |
Beyond these standard options, we also accommodate:
Longer Raw Material Length — Beyond The Standard 6,300mm
Special Chuck, Power, Or Automation Combinations Not Listed Above — Tell Us Your Requirements
Tell Our Engineers Your Tube Specifications And Production Volume, And We’ll Recommend A Configuration Built Around Your Actual Workflow — Pricing Is Quoted Per Order Based On Your Chuck Size, Power, And Length Requirements.
Why Our Laser Welding Machine Perform

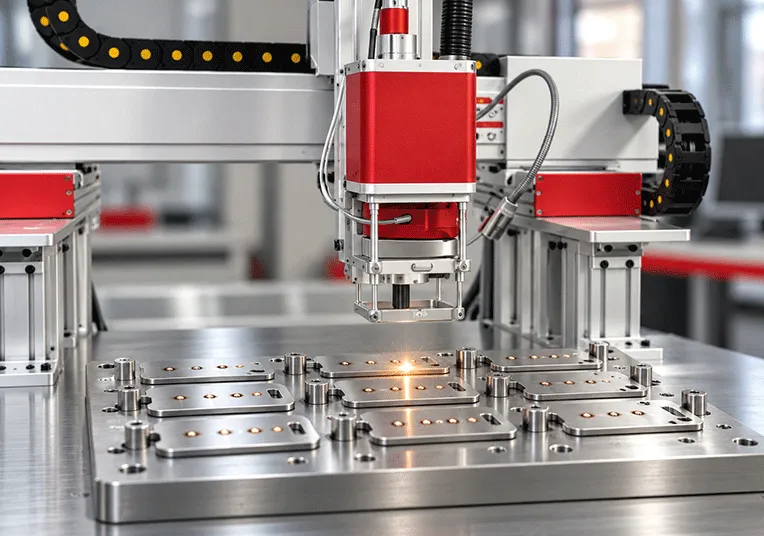

Galvo Scanning for Multi-Point Work
The gantry machine directs the beam through a scanning head for programmed welding at multiple points.

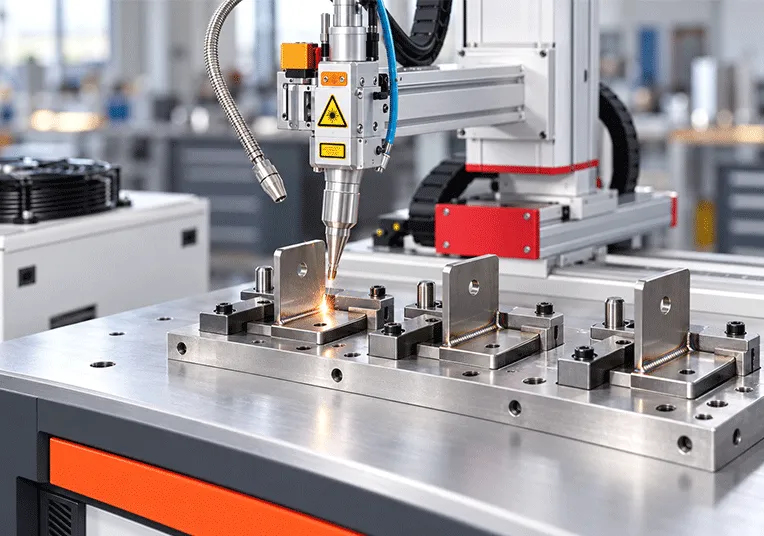

CNC Worktable and Fixtures
The platform machine combines positioned worktable motion with custom fixtures for repeated part welding.
Stored Welding Process Settings

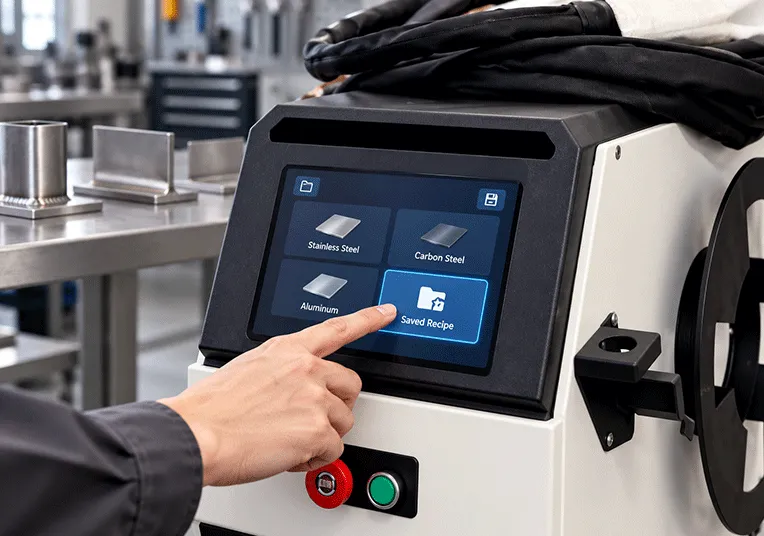

Touch-screen material presets on the handheld welder and stored platform settings support repeat jobs.
Inside the Machine
- 23T Handheld Welding Head
- Air-cooled handheld
- Air-cooled handheld
- Air-cooled handheld-platform
- Gantry galvo
- Gantry galvo
- Gantry galvo
- Platform
- Platform

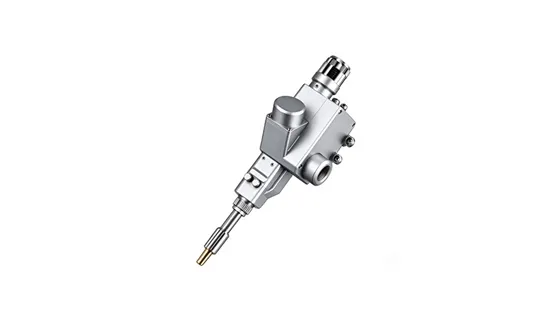

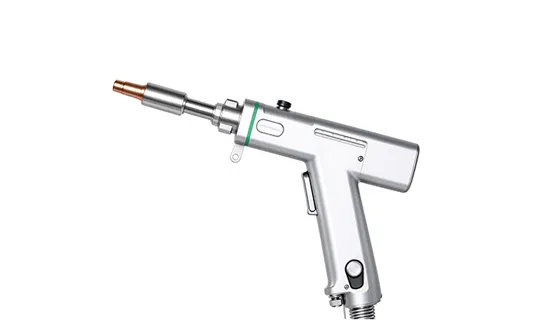

23T Handheld Welding Head
A lightweight hand-guided torch gives the operator direct control of the weld path.

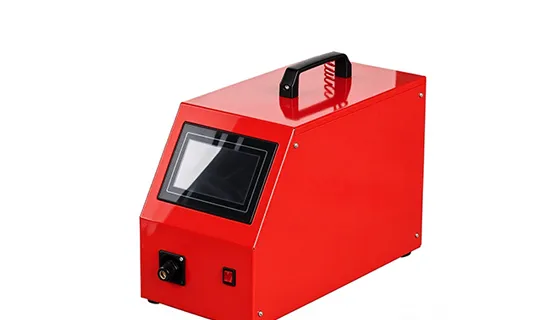

Chaoqiang Single-Wire Feeder
Feeds filler wire to the weld joint during handheld operation.

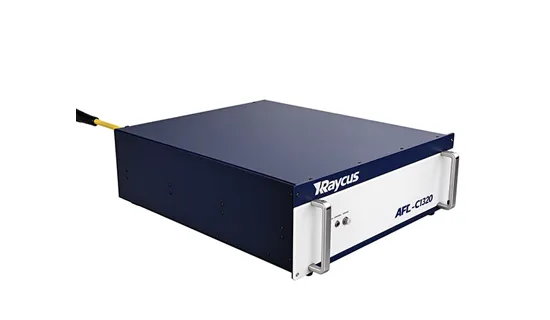

Raycus Fiber Laser Source
Supplies the welding beam for the handheld and platform configurations.

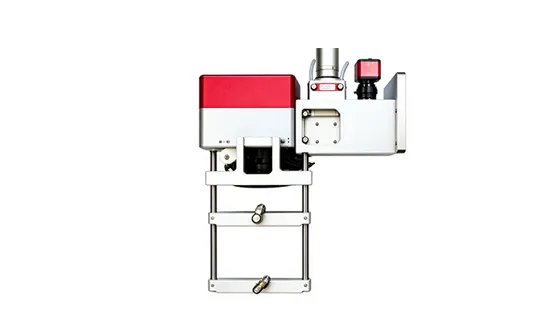

Galvo Scanning Welding Head
Steers the beam between programmed weld points through a scanning optical system.

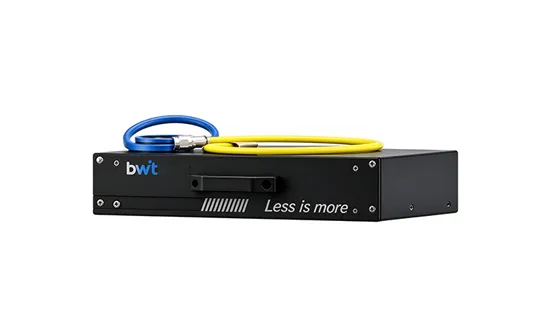

Caplin Laser Source
Provides the laser beam used by the gantry machine’s scanning welding head.
CCD Weld Magnification
Provides a magnified view of the weld area for visual observation.

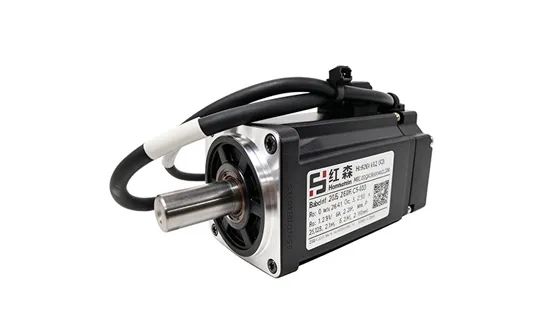

Hongsen Servo Motor
Drives controlled axis motion for the platform’s CNC positioning system.
Chaoqiang 26A Dual-Wobble Head
Adds dual-wobble beam motion to the platform machine’s welding configuration.
S&A Water Chiller
Removes heat through water cooling during platform welding operation.
Finished Machine Gallery
Industries We Serve
-
Pet Supplies (Cages)
-
Construction Site Equipment (Scaffolding)
-
Advertising & Display Equipment
-
Construction, Guardrails & Fencing
FAQ Section
The air-cooled handheld series offers 900, 1200, 1500 and 2000 W. The water-cooled gantry and platform machines offer 1500, 2000, 2500 and 3000 W. A 1500W laser welding machine is available in all three formats, with different cooling and motion configurations.
The handheld and platform machines support stainless steel, carbon steel and aluminum applications. Welding results depend on the alloy, thickness, joint fit-up and settings. The available information does not establish a single welding-thickness limit across the range.
No. The handheld series uses air cooling and does not require a separate water chiller. Its cabinet has a handle and casters, and its touch screen stores material settings. The gantry and platform models use water cooling.
The CCD system provides weld-area magnification for visual observation. This feature does not establish automatic seam tracking, automatic defect detection or closed-loop weld correction.
Power, welding format, cooling, motion axes, fixtures and integration scope affect the quotation. For a CNC laser welder or handheld configuration, provide your material, thickness, joint drawings and production requirements to request a machine-specific price.
